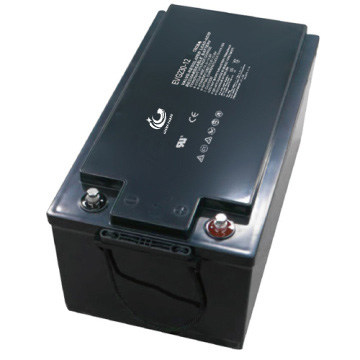

High power battery 12V230Ah GEL semi-traction battery
Quantity:
EVG230-12
Our High power batteryis a perfect fit for any semi-traction application. With its long lifespan, high energy density, and fast charging speed, it is the perfect replacement for your conventional gel batteries.
Our high power battery Gel battery with LIFEPO lithium battery is a cutting-edge solution that provides exceptional performance and reliability. With a capacity of 230Ah and 12V, it is suitable for a wide range of applications, including solar systems, electric vehicles, marine, and industrial applications. The battery is a semi-traction gel battery, which means it is designed for frequent deep discharge cycles and is highly resistant to shock, vibration, and temperature variations. High power battery Gel battery It also provides a longer lifespan than standard lead-acid batteries, reducing your maintenance costs. One of the high power battery Gel battery major advantages of our battery is its LIFEPO lithium battery technology. High power battery Gel batteryIt provides a high-performance power source for your energy needs, ensuring maximum output and efficiency. Additionally, it is lightweight and compact, allowing for easy installation and maintenance. Our high power battery with LIFEPO lithium battery is an excellent choice for users who want a reliable and long-lasting power source that is also environmentally friendly.High power battery Gel battery It is an optimal solution for remote locations, off-grid power systems, and backup power applications. Overall, our high power battery with LIFEPO lithium battery is a top-quality product that provides excellent value for money, reliability, and efficiency. high power battery Gel batteryIt is an innovative and advanced solution that can help you meet your energy needs with ease, making it a must-have for anyone who demands the best.
GEL semi-traction battery 12V230Ah High power battery Gel battery
| Specifications | |
| Rated Voltage | 12V |
| Nominal Capacity | 230Ah (C20, 10.8V) |
| Approx Weight | 74kg±3% (163.1lbs) |
| Terminal | F12/M8 |
| Rated Capacity(25°C) | 230 Ah (20hr,11.75A,10.8V), 190 Ah (5hr,39A,10.5V), 170 Ah (3hr,56.67A,10.2V) |
| Max.Discharge Current | 2300A(5s) |
| Max.Charge Current | 57.5A |
| Internal Resistance(25°C) | Approx 3mΩ |
| Operating Temp.Range Discharge | -20~60°C(-4~140°F) |
| Operating Temp.Range Charge | -10~50°C(14~122°F) |
| Operating Temp.Range Storage | -20~60°C(-4~140°F) |
| Nominal operating temperature | 25±5°C |
| Charge Voltage @25°C(77°F) Cycle Use | Initial Charging Current less than 25A. Voltage 14.4V~15.0V at 25°C(77°F) |
| Charge Voltage @25°C(77°F) Standby Use | Initial Charging Current less than 25A. Voltage 13.5V~13.8V at 25°C(77°F) |
| Temperature effects on capacity 40°C (104°F) | 103% |
| Temperature effects on capacity 25°C (77°F) | 100% |
| Temperature effects on capacity 0°C (32°F) | 86% |
| Temperature effects on capacity -15°C (5°F) | 65% |
| Self Discharge(25°C) Capacity after 3 months storage | 91% |
| Self Discharge(25°C) Capacity after 6 months storage | 82% |
| Self Discharge(25°C) Capacity after 12 months storage | 65% |
| Length | 520±2mm (20.47 inches) |
| Width | 268±2mm (10.55 inches) |
| Container Height | 188±2mm (7.4 inches) |
| Total Height | 220±2mm (8.66 inches) |
Features of OREMA EVGT230-12 12V 230Ah GEL battery
High power battery Electric Vehicle Battery:
high power battery Gel battery High Seismic Resistance for Uncompromised ReliabilityAdvanced GEL Technology for Deep Cycle Durability
high power battery Gel battery A Revolutionary Power Source for Heavy Industrial Traction
Stable high power
