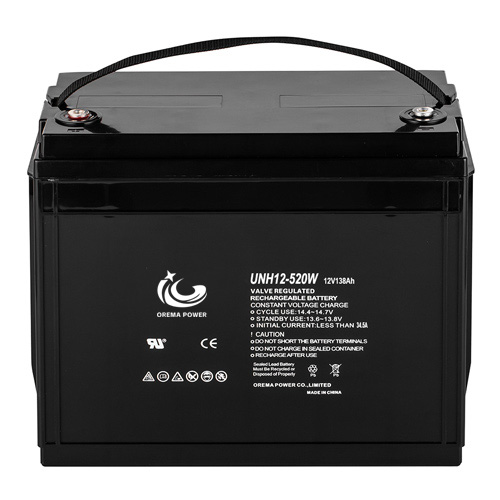

AGM Sealed Lead Acid Battery of 12V520W with High Discharge Rate
Quantity:
UNH12-520W
This VRLA battery is ideal for data centers, UPS/EPS power systems, and telecommunication systems with high current discharge, fast charging, and a maintenance-free design.
Delivery:
FOB,CFR,CIF,EXW
minimum order:
10 pieces
Supply Ability:
100000pieces / Month
Country of Origin:
China
Stock Time:
15-20Day
The 12V 520W AGM High Rate Battery with High Discharge Rate is a VRLA battery that boasts long life, stable performance, high current discharge, and fast charging. This AGM High Rate Battery is maintenance-free and can operate in various orientations without spilling acid. This AGM High Rate Battery is ideal for data centers as it provides backup power for the servers, switches, and storage systems in the event of a power outage. This AGM High Rate Battery is also perfect for UPS/EPS power systems that require reliable backup power at all times. Telecommunication systems can benefit from this battery due to its stable performance and high current discharge, which can help prevent system failure during peak usage hours. With its impressive features and benefits, this AGM High Rate Battery is a reliable and efficient power source for a variety of applications.
Product Information:
Nominal Voltage(@25℃): | 12V |
15 Minute rate Capacity (@25℃): | 520W |
Weight: | 44kg (97.002lbs) |
Length: | 341mm (13.425inches) |
Width: | 173m (6.811inches) |
Height: | 283mm (8.425inches) |
Total Height: | 288mm (8.583inches) |
Terminal: | F11 OR F12 |
Design life(@25℃) | 10-12 years |
Warranty: | 24 months |
Certificate: | ISO9001, ISO14001, ISO45001, UL, CE, TLC |
Package: | 1 pcs per Carton |
Features of this 520Watts AGM High Rate Battery:
- 520w high rate battery ideal for UPS Equipment,Office Machines and Computers,Telecommunications,etc
- Sealed Lead Acid Rechargeable AGM High Rate Battery for UPS Systems, Servers, Backup Power
- Pure heavy-duty lead calcium grid design
- Positive and negative plates with lead calcium alloy
- Tank formed plates for even capacity matched plates
- Anchored plate groups to guard against vibration
- Superior energy density
- Low pressure operating flame arresting safety valves
- 99% Internal gas recombination
- Usable in any orientation
- General purpose electric vehicle application
- Low self discharge, six months shelf life @ 20 C
- Improved cycle life design
- Complies with IATA/ICAO Provision A67
- Classed as non-spillable, not restricted for air transport
- Multi-terminal options available on special on special order
- Removable carry handles on most blocks
FAQ:
1, What does it mean by an AGM High Rate Battery?
AGM High Rate Battery is specially created to provide intense power pulses for short durations. In most battery types, such as AGM (Absorbent Glass Mat) and lead-acid, a connection can be found between the depth of discharge (DOD) and the battery's lifecycle. The lifecycle of a battery refers to the charge/discharge cycles it can endure throughout its livability and it heavily depends on the permitted DOD. If a battery's discharge is controlled to a smaller percentage (about 50%), it will have more effective cycles compared to a situation where it's frequently discharged to its utmost DOD (lower than 80%).
More often, the classic Lead-Acid Battery can execute 200-300 charge/discharge cycles relying on the operational temperature and DOD. However, AGM High Rate Battery, under ideal situations operating in the range of 68-77 degrees Fahrenheit at a 50% DOD, can perform up to 400 charge/discharge cycles with a lifespan of 14-16 years.
2, Where is AGM High Rate Battery typically used?
AGM High Rate Battery finds their applications predominantly in consumer and industrial sectors such as Uninterruptible Power Supply (UPS) systems, Information Technology (IT) systems, Remote Control (RC) models, drones, robotics, and vehicle emergency starters. Each of these applications has a need for a powerful burst of energy within a limited time frame.
